Applicazione
The installation cables are used for telephone, signaling and data transmission for permanent surface or concealed installation in dry and damp rooms and for outdoor applications.
Norme
• DIN VDE 0816/0815
Costruzione
Conduttori
Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 class 1
Isolamento
Solid polyethylene 2YI2 type as per VDE 0207-2
Elemento di cablaggio
Star Quads

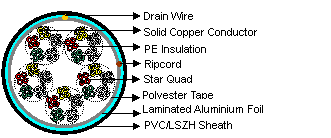

Cavo Core Assemblea
Group of four wires is stranded into a star quad, the quads are assembled into units and the units form the core
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing
Schermo
Laminated aluminium foil is fully enclosing the core with an overlap
Guaina
PVC YM1 type to DIN VDE 0207 part 5. LSZH sheath can be offered as option
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Drain Wire (optional)
Tinned drain wire may be applied longitudinally to provide continuity of the screen
Tipo Codici
| J- |
Installation Cable |
| 2Y |
Polyethylene (PE) |
| H |
Low Smoke & Zero Halogen |
| (St) |
Static Shield of aluminium tape |
| StIII |
Star quad in local cables |
| Bd |
Unit-type stranding |
Proprietà elettriche
Nominal Conductor Diameter |
mm |
0.6 |
0.6 |
VDE CODE |
|
J-2Y(St)Y |
J-2Y(St)H |
Conductor Size |
mm2 |
0.283 |
0.283 |
Maximum Conductor Resistance @20°C |
Ω/km |
63 |
63 |
Maximum Loop Resistance @20°C |
Ω/km |
130 |
130 |
Minimum Insulation Resistance @500V DC |
MΩ.km |
5000 |
5000 |
Mutual Capacitance @0.8KHz (100% of all values) max |
nF/km |
52 |
52 |
| (95% of all values) max |
|
50 |
50 |
| Capacitance Unbalance @0.8KHz |
pF/300m |
|
|
K1 100% of values max |
pF/300m |
800 |
800 |
98% of values max |
pF/300m |
400 |
400 |
K9-12 100% of values max |
pF/300m |
300 |
300 |
98% of values max |
pF/300m |
100 |
100 |
Maximum Loop Resistance @20°C |
Ω/km |
130 |
130 |
Impedance (4 -16 Mhz) |
Ω |
100+/-15% |
100+/-15% |
Maximum Average Attenuation @1MHz |
dB/km |
35 |
35 |
Maximum Average Attenuation @4MHz |
dB/km |
55 |
55 |
Maximum Average Attenuation @10MHz |
dB/km |
73 |
73 |
Maximum Average Attenuation @16MHz |
dB/km |
86 |
86 |
Maximum Average Attenuation @20MHz |
dB/km |
95 |
95 |
Maximum Working Voltage Peak Value |
V |
225 |
225 |
Insulation Material |
|
PE |
PE |
Sheath Material |
|
PVC |
LSZH |
Nominal Insulation Thickness |
mm |
0.25 |
0.25 |
Nominal Insulated Conductor Diameter |
mm |
1.1 |
1.1 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter
Colore Codice
Quads
The single core is identified by black ring markings:
| Side Circuit 1 |
a-wire |
without marking |
| |
b-wire |
1 mark distance 17mm |
| Side Circuit 2 |
a-wire |
2 marks distance 34mm |
| |
b-wire |
2 marks distance 17mm |
Subunità
Basic colours for the wire insulation of the 5 star quads of a basic unit:
| Quad 1 Red |
Quad 2 Green |
|
| Quad 3 Grey |
Quad 4 Yellow |
Quad 5 White |
The tracer units are coded with a red helix, all other units by a white binder
Dimensioni e peso
VDE CODE: J-2Y(St)Y…x2x 0.6 StIII Bd
| Cable Code |
Number
of
Pairs |
Nominal Insulation
Thickness
mm |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.6mm Conductor, 1.1mm Insulated Wire |
TP815J-2Y(St)Y-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
TP815J-2Y(St)Y-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
TP815J-2Y(St)Y-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
TP815J-2Y(St)Y-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
TP815J-2Y(St)Y-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
TP815J-2Y(St)Y-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
TP815J-2Y(St)Y-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
TP815J-2Y(St)Y-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
TP815J-2Y(St)Y-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
TP815J-2Y(St)Y-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
TP815J-2Y(St)Y-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
VDE CODE: J-2Y(St)H…x2x 0.6 StIII Bd
| Cable Code |
Number
of
Pairs |
Nominal Insulation
Thickness
mm |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.6mm Conductor, 1.1mm Insulated Wire |
TP815J-2Y(St)H-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
TP815J-2Y(St)H-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
TP815J-2Y(St)H-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
TP815J-2Y(St)H-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
TP815J-2Y(St)H-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
TP815J-2Y(St)H-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
TP815J-2Y(St)H-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
TP815J-2Y(St)H-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
TP815J-2Y(St)H-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
TP815J-2Y(St)H-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
TP815J-2Y(St)H-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
